Gas Mechanism and Transfer Design

Learning Objectives

• Understand the economic model and incentive mechanism of blockchain
• Master the concepts and relationships of Gas, Gas Price, and Gas Fee
• Understand Ether units and conversions
• Master contract transfer design (receive / fallback / payable)

Blockchain Economic System

Why is an Economic Model Needed?

• Computing and storage resources are scarce: Every node must execute and store all transactions
• Consensus and trustlessness require miners' work: Miners (validators) need incentives to continue participating
• Transaction execution has a cost (gas): Gas fees become a direct incentive for miners
• Ether is the native currency of the ecosystem: Used for paying gas fees, transfers, and contract interactions

Ether Units

1 ETH = 10^18 Wei (Wei is the smallest unit)

// SPDX-License-Identifier: MIT
pragma solidity >=0.8.2 <0.9.0;

contract EtherUnits {
    uint public oneWei = 1 wei;
    bool public isOneWei = (1 wei == 1);

    uint public oneEther = 1 ether;
    bool public isOneEther = (1 ether == 1e18);
}

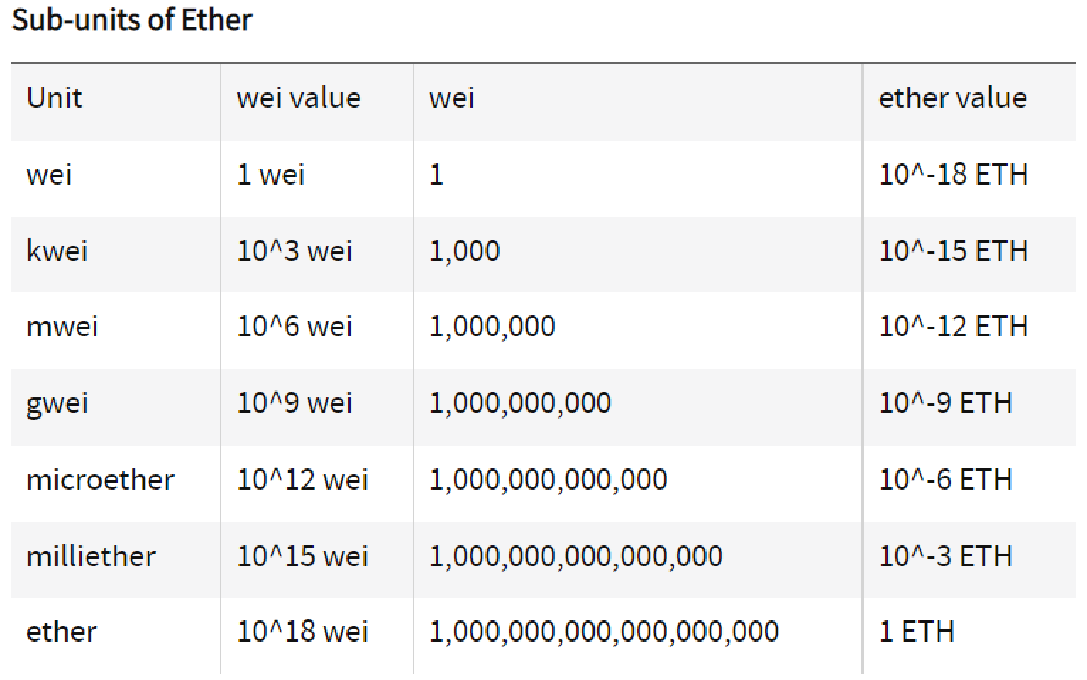

Common unit conversions:

Gas, Gas Fee, Gas Price

Relationship Among the Three

Gas Fee = Gas × Gas Price

• Gas: Determined entirely by the execution logic. For functions with fixed logic, gas consumption is constant (e.g., a single SSTORE operation consistently consumes 20000 gas)
• Gas Price: Set by the transaction initiator in the transaction, with Gwei as the unit. Gas Price is determined by market supply and demand—prices rise during network congestion and fall when idle
• Gas Fee: The final fee paid, equal to the actual gas consumed multiplied by the gas price

Gas Limit

Gas Limit exists at three levels:

1. Transaction Level: The transaction initiator sets the gas limit, indicating the maximum amount of gas they are willing to consume
2. Contract Call Level: When calling between contracts, a gas limit can be specified to control the gas consumption of sub-calls
3. Block Level: Each block has an upper gas limit, restricting the total computation for a single block

gasleft() Function

gasleft() returns the currently available gas, which can be used for:
- Monitoring gas consumption
- Exiting early before gas runs out
- Limiting gas consumption of sub-calls

Refund Rules

• Unused gas remaining will be refunded to the transaction initiator
• If a transaction fails (revert / out of gas), consumed gas is not refunded

// SPDX-License-Identifier: MIT
pragma solidity >=0.8.2 <0.9.0;

contract Gas {
    uint public i = 0;
    uint public remained;

    function forever() public {
        while (true) {
            if (i > 100) return;
            if (i == 10) {
                remained = gasleft(); // 记录剩余 gas
            }
            i += 1;
        }
    }
}

contract GasCaller {
    Gas private gas;

    constructor(Gas _gas) {
        gas = _gas;
    }

    function callForever() public {
        gas.forever{gas: 200000}(); // 限制子调用最多消耗 200000 gas
    }
}

Contracts Holding Ether

• Contracts can hold Ether! Contract addresses, like EOA addresses, have balances
• Contracts can freely transfer between other contracts or EOAs
• Typical applications: Multisig Wallets, DeFi protocols, ICO contracts

Transfer Design Philosophy

Core Understanding

Transfers do not have a separate function; they occur together with function calls.

When calling a contract function, Ether can be sent simultaneously by attaching the option {value: amount}:

// 通过 call 转账
_to.call{value: 1 ether}("");

// 通过具名函数转账
contract.deposit{value: 1 ether}();

Called Function Resolution Logic (Important!)

When a contract receives a call, the EVM decides which function to execute based on the following logic:

Send Ether (Function Call)
        │
   Is msg.data empty?
      /         \
    No           Yes
    /             \
Function name matches?    receive() exists?
  /    \          /       \
 Yes    No        Yes        No
 /      \        /          \
Matching function  fallback()  receive()  fallback()

payable Check

• If msg.value > 0 and the target function does not have the payable modifier → Call fails (automatic revert)
• The sole purpose of the payable modifier is to allow a function to receive Ether

receive() Function

receive() is a function specifically for handling pure Ether transfers (when calldata is empty), making the responsibilities of fallback clearer:

• receive(): Handles pure Ether transfers
• fallback(): Handles calls to non-existent functions

// SPDX-License-Identifier: MIT
pragma solidity >=0.8.2 <0.9.0;

contract ReceiveEther {
    string public caller;

    receive() external payable {
        caller = "receive";
    }

    fallback() external payable {
        caller = "fallback";
    }

    function deposit() public payable {
        // 接收 Ether 的普通函数
    }

    function getBalance() public view returns (uint) {
        return address(this).balance;
    }
}

Comparison of Transfer Methods

// SPDX-License-Identifier: MIT
pragma solidity >=0.8.2 <0.9.0;

contract SendEther {
    // 推荐方式：通过 call 转账
    function sendViaCall(address payable _to) public payable {
        (bool sent, ) = _to.call{value: msg.value}("");
        require(sent, "Failed to send Ether");
    }

    // 通过具名函数转账
    function sendViaFoo(address payable _to) public payable {
        ReceiveEther re = ReceiveEther(_to);
        re.deposit{value: msg.value}();
    }
}

Comprehensive Example: ERC20 Token + ICO

Below is a simplified ERC20 token contract, combining ICO (Initial Coin Offering) functionality, demonstrating the practical application of transfer design:

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.13;

contract MyErc20Token {
    string public name = "MyDollar";
    string public symbol = "$";
    uint public decimals = 4;
    address public owner;
    mapping(address => uint) public balanceOf;

    constructor() {
        owner = msg.sender;
    }

    // 铸币：用户发送 ETH 购买代币
    function mint() external payable {
        balanceOf[msg.sender] += msg.value;
    }

    event TransferEvent(uint oldv, uint newv);

    modifier isOwner() {
        require(msg.sender == owner, "not owner!");
        _;
    }

    // 转账：从调用者账户转给目标地址
    function transfer(address to, uint amount) public {
        address from = msg.sender;
        uint current = balanceOf[from];
        require(current >= amount, "not enough balance!");
        uint toc = balanceOf[to];

        current -= amount;
        toc += amount;
        balanceOf[from] = current;
        balanceOf[to] = toc;
    }

    // 提现：仅 owner 可以将合约中的 ETH 提取到自己的地址
    function withdraw() external isOwner {
        (bool suc, ) = owner.call{value: address(this).balance}("");
        require(suc, "failed!");
    }
}

Contract Function Analysis:

1. mint(): Users send ETH to call this function, and the contract records the corresponding token balance (payable allows receiving ETH)
2. transfer(): Transfers between token holders (note that this is a token-level transfer, not an ETH transfer)
3. withdraw(): The contract owner withdraws all ETH held by the contract to their address, using the call{value: ...} method for transfer
4. isOwner modifier: Permission control, ensuring only the contract deployer can withdraw
